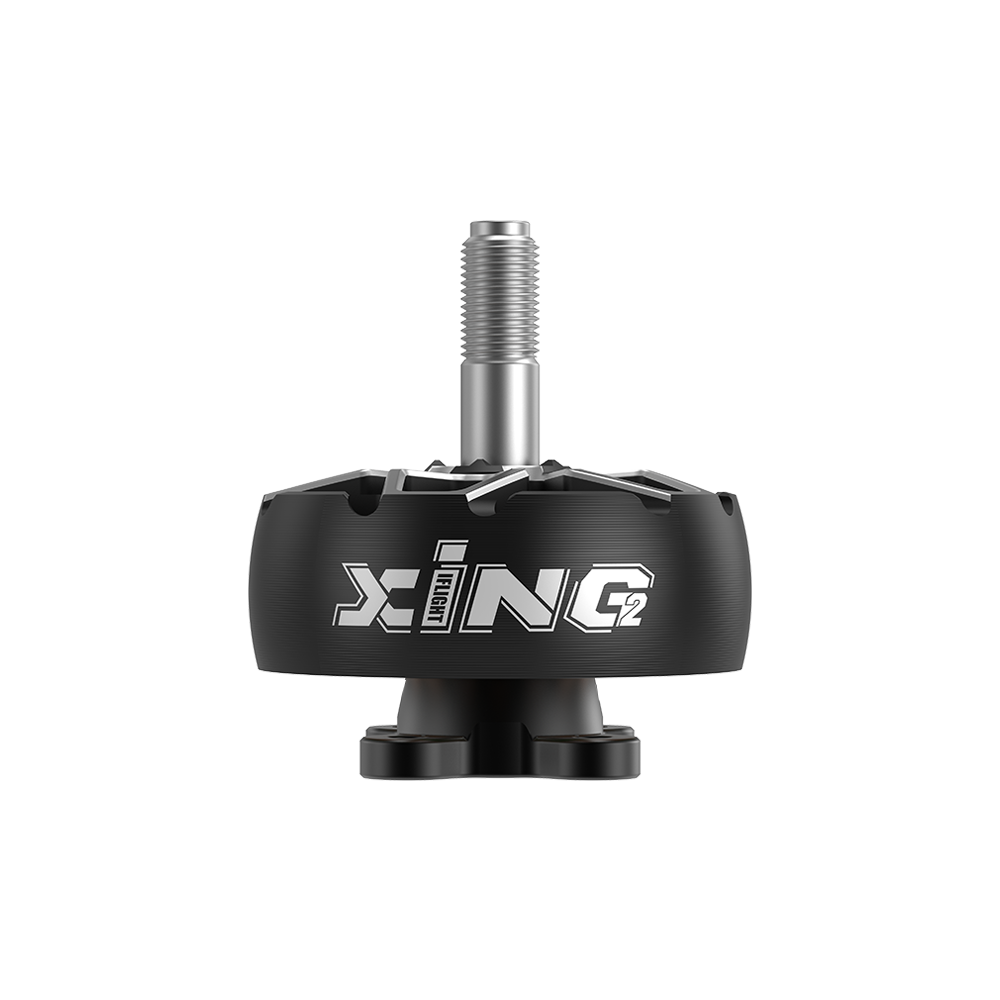

XING2 2506 FPV Motor Unibell 1500KV
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
1500
Pole Count
14
Max Amp Draw
33
Units Per Pack
1
Stator Height Mm
6
Max Input Voltage
25.2
Shaft Diameter Mm
5
Stator Diameter Mm
25
Compatibility & Build Notes
Build note 01
25x6 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 1500KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans up to 25.2V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 5 mm shaft standard to avoid adapter or fitment issues.
