MotorsActive listing
T-Motor

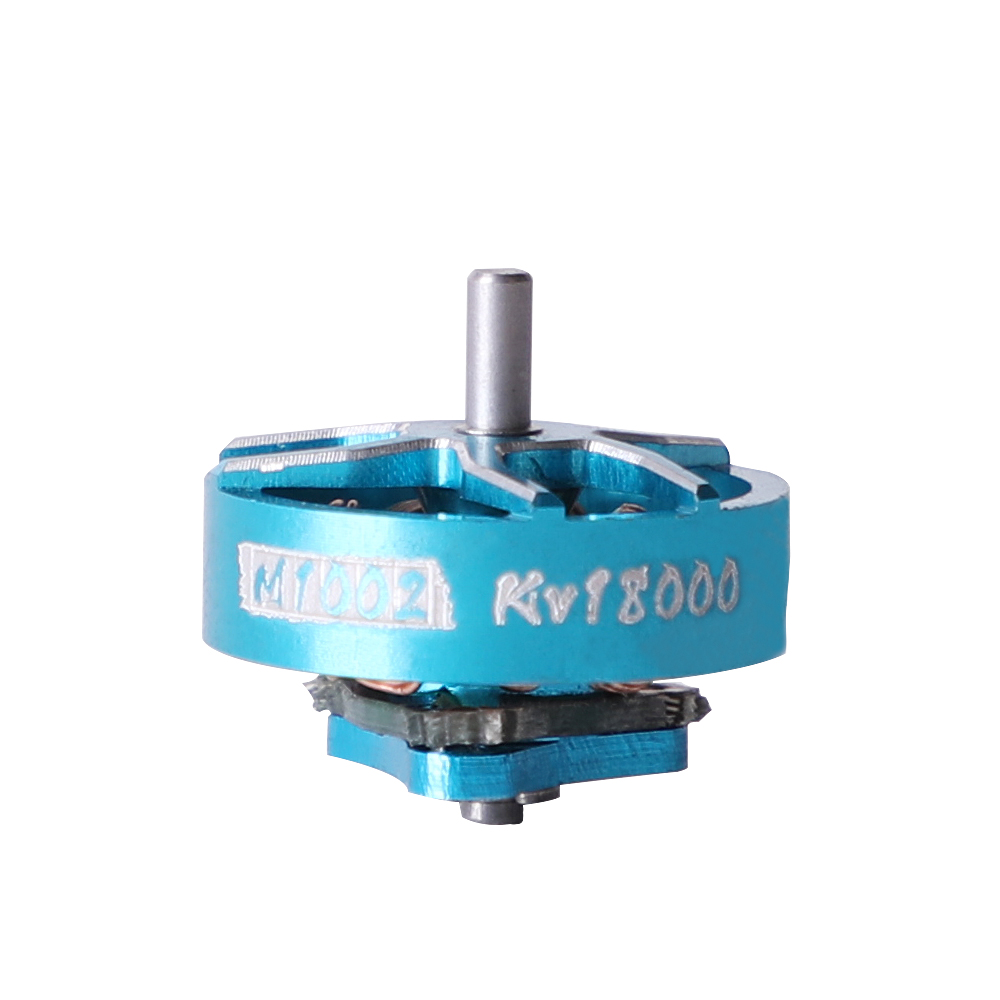

T-Motor M1002 18000KV TinyWhoop Brushless Motor
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
18000
Pole Count
12
Shaft Type
m_spec_threaded
Max Amp Draw
5
Units Per Pack
1
Stator Height Mm
2
Max Input Voltage
4.2
Min Input Voltage
3.7
Shaft Diameter Mm
1.5
Stator Diameter Mm
10
Compatibility & Build Notes
Build note 01
10x2 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 18000KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 3.7V to 4.2V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 1.5 mm shaft standard to avoid adapter or fitment issues.
