MotorsActive listing
T-Motor

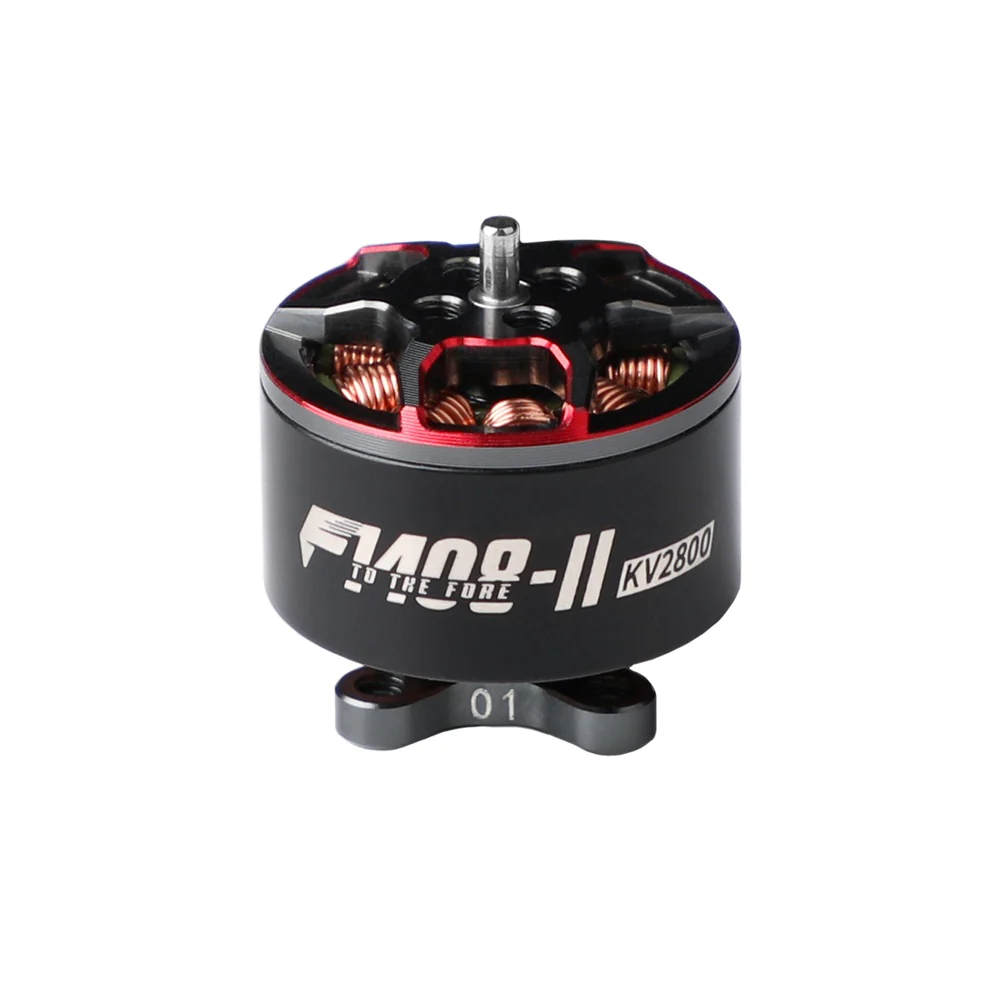

T-Motor F1408-II Micro FPV Motor
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
2800
Pole Count
12
Shaft Type
m_spec_threaded
Max Amp Draw
22
Units Per Pack
1
Stator Height Mm
8
Max Input Voltage
25.2
Min Input Voltage
11.1
Shaft Diameter Mm
2
Stator Diameter Mm
14
Compatibility & Build Notes
Build note 01
14x8 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 2800KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 11.1V to 25.2V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 2 mm shaft standard to avoid adapter or fitment issues.
