MotorsActive listing
MAD MOTOR

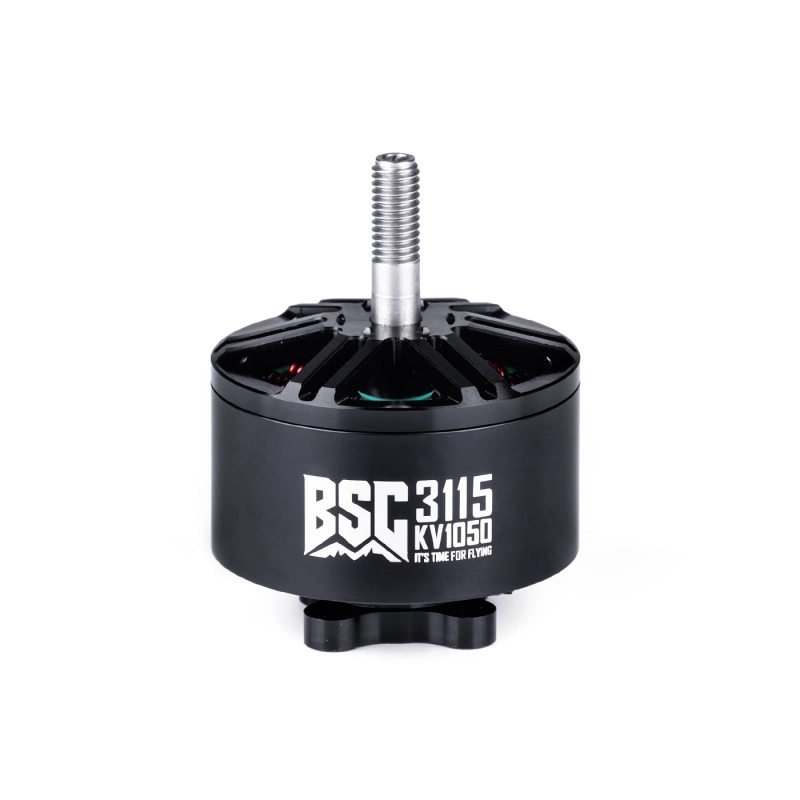

MAD MOTOR BSC 3115 FPV drone motor
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
490
Pole Count
14
Shaft Type
m_spec_threaded
Max Amp Draw
78
Units Per Pack
1
Stator Height Mm
15
Max Input Voltage
44.4
Min Input Voltage
22.2
Shaft Diameter Mm
5
Stator Diameter Mm
31
Compatibility & Build Notes
Build note 01
31x15 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 490KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 22.2V to 44.4V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 5 mm shaft standard to avoid adapter or fitment issues.
