MotorsActive listing
drkstore

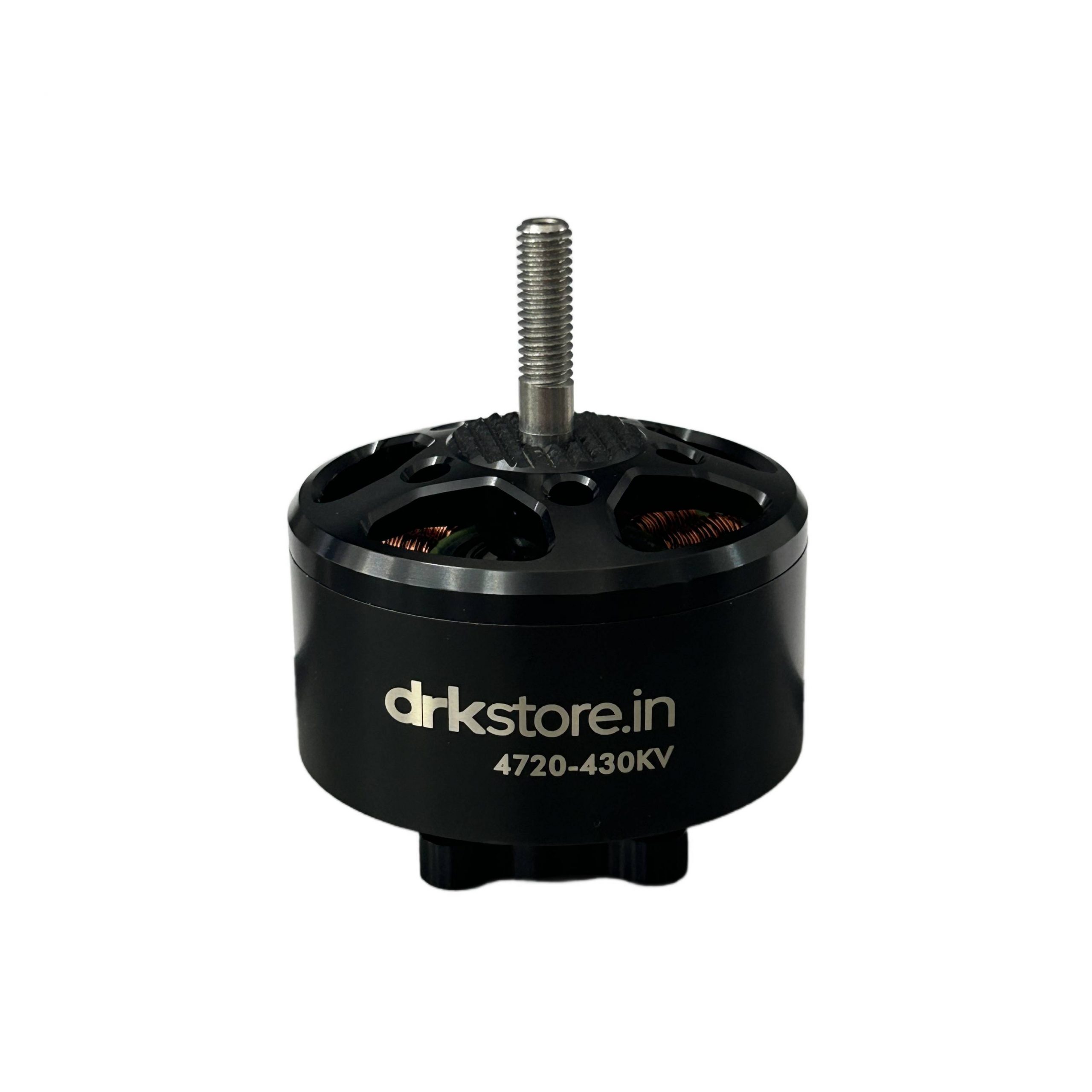

drkstore 4720 430kv Brushless FPV Motor
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
430
Pole Count
14
Max Amp Draw
72
Units Per Pack
1
Stator Height Mm
20
Max Input Voltage
44.4
Min Input Voltage
22.2
Shaft Diameter Mm
6
Stator Diameter Mm
47
Compatibility & Build Notes
Build note 01
47x20 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 430KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 22.2V to 44.4V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 6 mm shaft standard to avoid adapter or fitment issues.
