MotorsActive listing
HappyModel

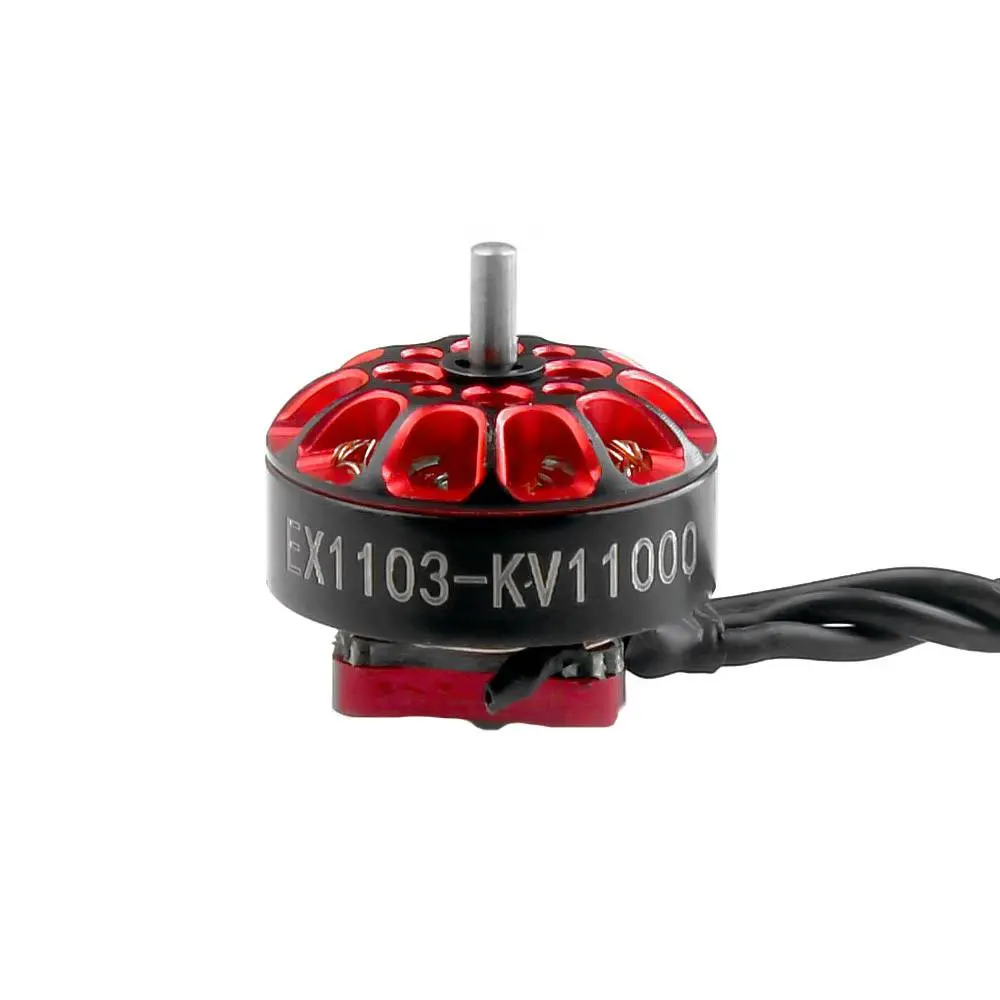

Happymodel EX1103 Bassline Motor – 11000KV
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
11000
Pole Count
12
Shaft Type
m_spec_threaded
Units Per Pack
1
Stator Height Mm
3
Max Input Voltage
8.4
Min Input Voltage
3.7
Shaft Diameter Mm
1.5
Stator Diameter Mm
11
Compatibility & Build Notes
Build note 01
11x3 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 11000KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 3.7V to 8.4V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 1.5 mm shaft standard to avoid adapter or fitment issues.
