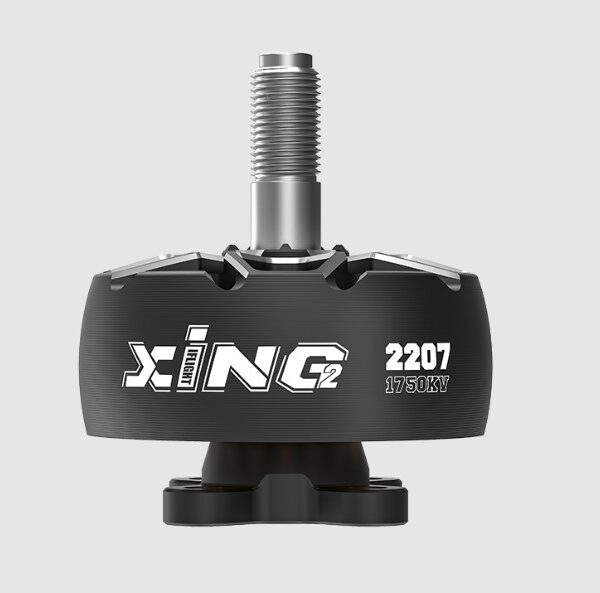

XING2 2207-1750KV 6S FPV MOTOR
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Kv
1750
Pole Count
14
Max Amp Draw
46
Units Per Pack
1
Stator Height Mm
7
Max Input Voltage
25.2
Min Input Voltage
16.8
Shaft Diameter Mm
5
Stator Diameter Mm
22
Compatibility & Build Notes
Build note 01
22x7 sizing gives you a quick read on the class of build this motor is meant to drive.
Build note 02
The 1750KV tune should be matched against your prop size and battery plan before committing to a build.
Build note 03
Published input support spans 16.8V to 25.2V, so confirm your pack voltage stays inside that range.
Build note 04
Use props that match the 5 mm shaft standard to avoid adapter or fitment issues.
