RekonFPV

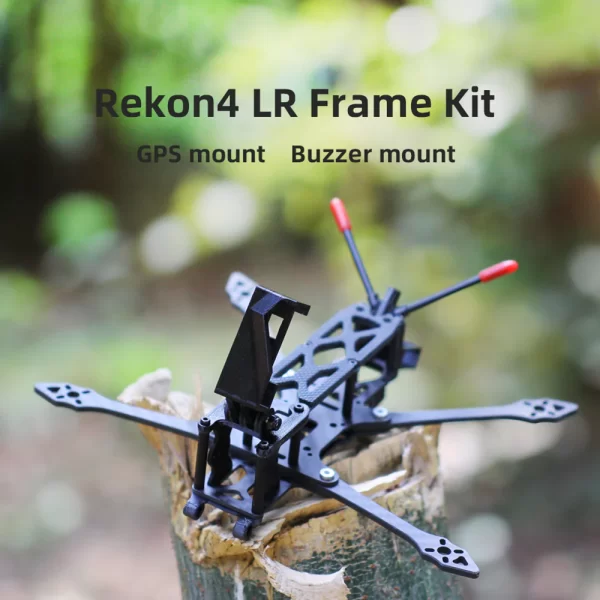

Rekon 4 LR Frame Kit 4 Inch Frame Kit
Part number
Catalog only
Normalized against the v5 schema baseline.
Product specifications
Frame Class
long_range
Motor Count
4
Size Inches
4
Stock Parts
1x 1.5mm top plate 1x 1.5mm bottom plate 1x 1.5mm middle plate 2x 1.5mm camera side panel 2x 3mm Fore arms 2x 3mm Rear arms 2x M2*25mm Black mesh aluminum columns 6x M2*20mm Black mesh aluminum columns 5x Round head screws M3*20 4x Head cap screws M2*20 4x Cup head screws M2*12 2x Cup head screws M2*9 4x Cup head screws M2*8 10x Round head screws M2*6 2x Round head screw M2*4 5x M3 Self-tightening nuts 4x M2 Self-tightening nuts 8x M3*6.6 shock-absorption balls 4x M2*4 shock-absorption balls 2x Battery straps 15x200mm 1x Battery Anti-slip pad 1x TPU SMA antenna mount 1x TPU antenna mount 1x TPU GoPro bracket
Dry Weight G
56.6
Wheelbase Mm
182
Arm Thickness Mm
3
Side Access Clearance
No
Prop Size Limit Inches
4
Compatibility & Build Notes
Build note 01
This airframe sits in the 4-inch class, which sets the overall build scale and prop envelope.
Build note 02
Treat 4 inches as the practical prop ceiling when pairing motors and props for this frame.
Build note 03
long range positioning gives a quick clue about the intended flying style and parts profile.
